The development of industrial automation has made many production links undergo qualitative changes. Among them, machine vision, as one of the widely used technologies of artificial intelligence in the manufacturing industry, uses the computer to simulate human vision detection function, and realizes product detection, measurement and control through automatic machine monitoring to help manufacturing enterprises achieve the goal of improving the flexibility and automation of production. Today, I will introduce a machine vision detection case of hardware.

Siptec machine Vision screening machine uses advanced hardware and software system architecture, adopts layered design C/S architecture, has multi-camera random free triggering, multi-camera multi-state task flow, process schema free logic construction, highly scenario-oriented mature operator toolbox. To realize the whole chain management from connection, communication, shooting, processing, detection, output, storage, display, can realize all the needs of customers' appearance and size detection.

Testing requirements: external surface scratches, external surface crush, compatibility

solution

SIPOTEK vision inspection software 1 set, SIPOTEK custom industrial computer 1 set, PHILIPS 22 "LCD monitor 1 set, SONY industrial camera 1 set, SIPOTEK custom camera adjustment module 1 set, telecentric HD optical industrial lens 1 set, custom optical adaptive ring light source 1 set, SIPOTEK custom control system 1 set, Panasonic servo motor 1 set, SIPOTEK custom reducer 1 set.

Detection effect

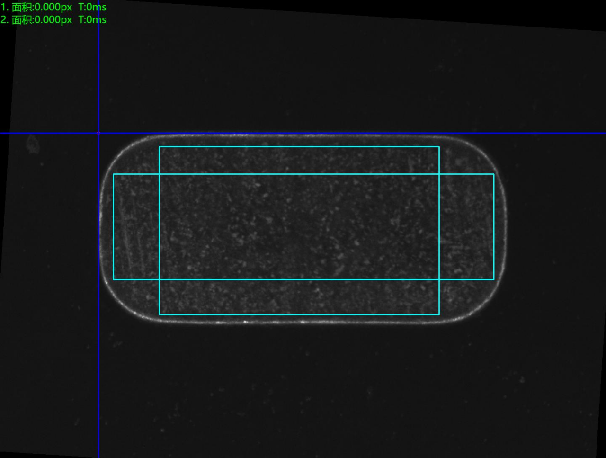

OK good product map

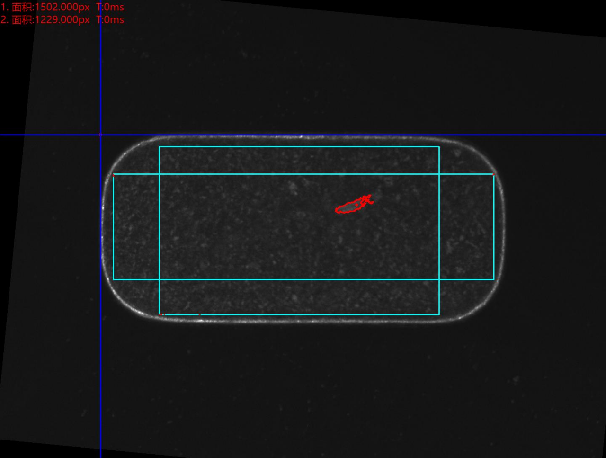

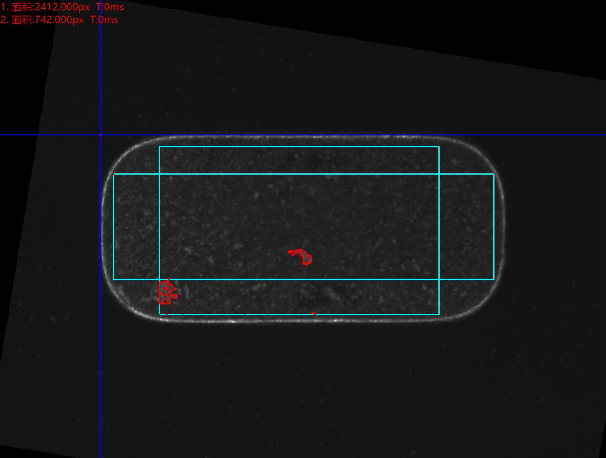

Crushed injury

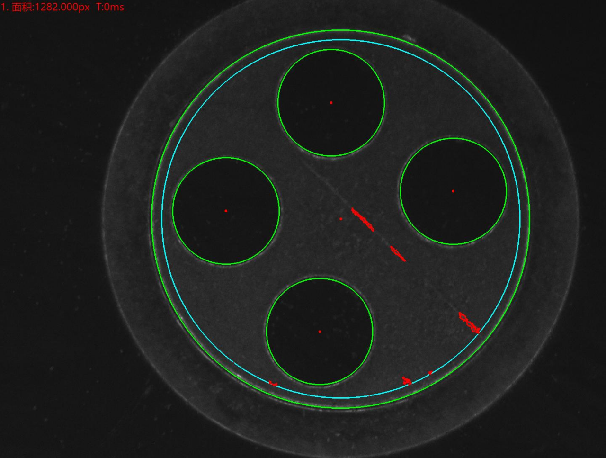

scratch

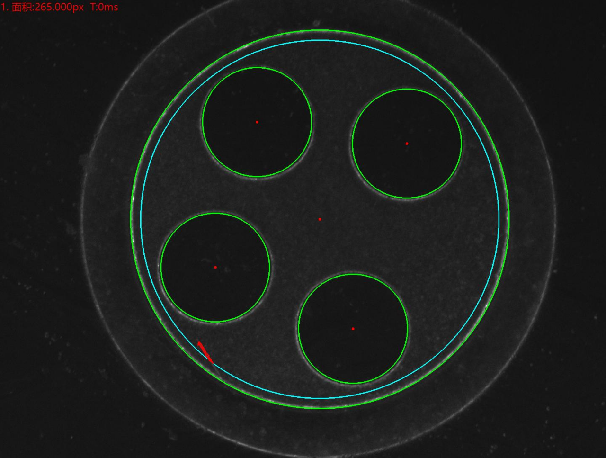

scratch

scratch
